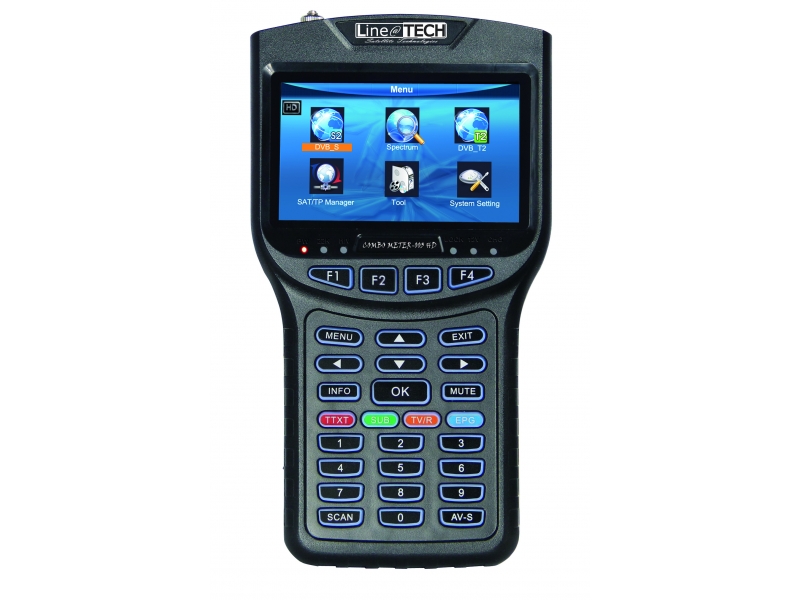

Line@TECH COMBO METER-003 HD
|
TRASMISSIONE STANDARDS |
|
|
DVB-S/S2,DVB-T/T2 |
|
|
LETTURA POTENZE FIBRA OTTICA |
|
|
DVB-T/T2 INPUT/DEMODULAZIONE |
|
|
Connettore |
IEC Female 9.5mm /FEMALE Type |
|
Input Frequency |
48 to 862 MHz |
|
Signal Input Level |
-79.5 dBm (MAX) |
|
Alimentazione antenna |
5V/12V/17V, IMax 100mA |
|
demodulazione |
QPSK,16QAM,64QAM,256QAM |
|
DVB-S/S2 INPUT/DEMODULAZIONE |
|
|
Connettore |
F Type |
|
Input Frequency |
950 to 2150 MHz |
|
Signal Input Level |
- 65 to -25 dBm |
|
Band Switch Control |
22KHz |
|
LNB Supply |
13V/18V, IMax 400mA |
|
Demodulazione |
QPSK,8PSK,16APSK |
|
Symbol Rate |
2 |
|
CARATTERISTICHE LCD |
|
|
LCD |
TFT TRANSMISSIVE |
|
Number of Dots |
480(RGB) x272 |
|
Active area (W x H) |
95.04x53.86 mm2 |
|
AV out/input |
|
|
Connettore |
3.5 mm jack |
|
Video |
CVBS, |
|
Audio |
Stereo Audio L/R output |
|
AUDIO/VIDEO PROCESSING |
|
|
Decompressione video |
MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding |
|
Resolving rate |
PAL-25 frame@720*576,NTSC-30 frame@720*480, |
|
Compatibilità segnale |
Supporta conversion differenti formati |
|
Video Format |
4:3,16:9,By Pan & Scan and Letter Box conversion |
|
Decompressione audio |
MPEG-1 Layer I/II ，MPEG-2 Layer I/II |
|
Audio output mode |
Stereo, Mono, R/L |
|
DATA SERVICE PORT |
|
|
Connettore |
USB |
|
Protocollo dati |
Interfaccia USB2.0 |
|
Sistema gestione file |
NTFS,FAT32,FAT16 |
|
Formato file |
wma,mp3,mp4,avi,jpg,jpeg,bmp,img |
|
MICROPROCESSORE |
|
|
Microprocessore |
NOVATEK |
|
Clock Frequency |
500MHz |
|
SDRAM Memory |
1Gbit DDR3 |
|
ALIMENTATORE |
|
|
Batteria litio |
7.4V/3000mAh |
|
adattatore |
OUTPUT :DC12V/1.5A, INTUPT :100-240VAC 50/60Hz |
|
Consumo |
Max. 10W |
|
CARATTERISTICHE FISICHE |
|
|
Dimensioni(W x D x H) |
9.5x15.5x4.5(cm3) |
|
Peso netto |
0.5kg |
|
