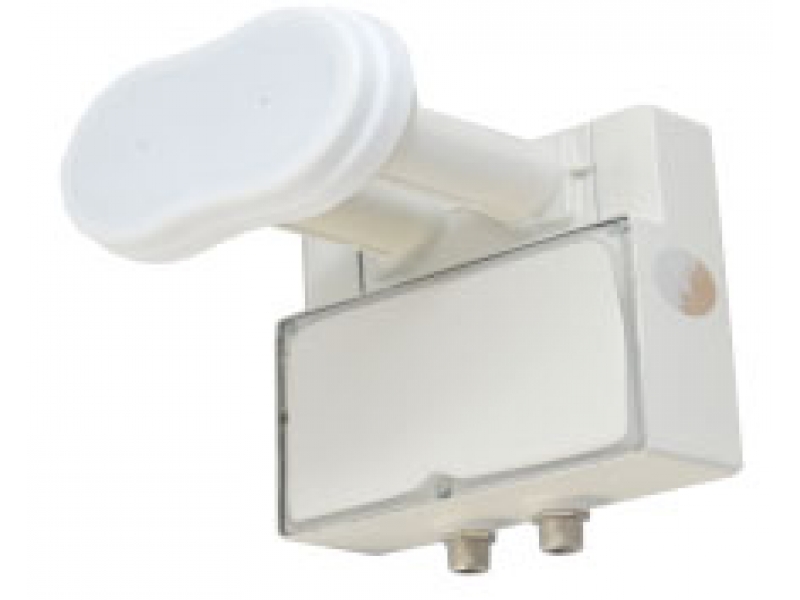

LNB INVERTO MONOBLOCCO TWIN 3 GRADI
CARATTERISTICHE TECNICHE:
| Input Frequency Range | Low Band : 10.7 ~ 11.7 GHz |
| High Band : 11.7 ~ 12.75 GHz | |
| Output Frequency Range | Low Band : 950 ~ 1950 MHz |
| High Band MH: 1100 ~ 2150 z | |
| L.O. Frequency | Low Band : 9.75 GHz |
| High Band : 10.60 GHz | |
| L.O. Frequency Stability | +/-1 MHz (Max)@ Room Temp. |
| Local Oscillator Frequency Phase Noise | -60 dBc/Hz @ 1KHz (Max.) |
| -85 dBc/Hz @ 10KHz (Max.) | |
| -105 dBc/Hz @ 100KHz (Max.) | |
| Noise Figure | 0.2 dB (Typ.) |
| Conversion Gain | 58 ~ 62 dB |
| Gain Flatness | 26 MHz Bandwidth +/-0.5dB (Typ.) |
| Polarity Switching Voltage | VERTICAL: 11.0 ~ 14.0 Vdc |
| HORIZONTAL: 16.0 ~ 20.0 Vdc | |
| Band Switching | Low Band: 0 kHz |
| High Band: 22 kHz | |
| Cross-Pol. Isolation | 25 dB (Typ.) |
| Image Rejection | 400 dB (Min.) |
| Current Consumption | 170 mA (Typ.) |
| Output Connector Type | 75 OHMS F-Female |
| Output Spurious | <-60dBm |
| Operating Temperature Range | -40°C ~ +65°C |
| Feed Length | 42 mm |
